Are there any tips for installing high-grade switches and sockets?

After several years of hard work, you finally bought your own house. In order to their future living place more beautiful, can not wait to start designing and decorating. However, in the design of the wall, you suddenly stuck in the main, in order to use electrical appliances, switch and socket installation is a must, but you feel directly on the wall above the installation of multiple switches and sockets is very unattractive. It does not matter, Maiden Electric editorial today to discuss with you, switch and socket how to match your wall, so that high-grade switch and socket to become the embellishment of the walls of your home.

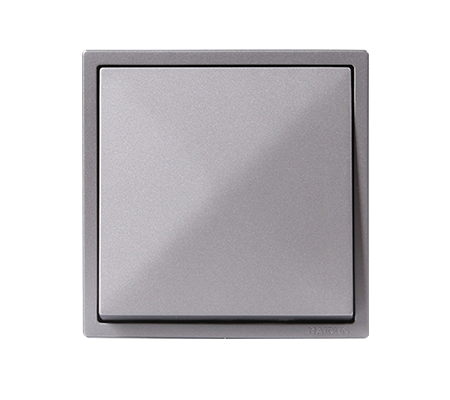

General household switch socket common model has a single switch, double switch, three switch, five-hole socket, 16A air conditioning socket, a five-hole socket, cable TV socket, telephone socket, network socket.

The location of the switch installation is appropriate at the edge of the door frame. Height of 1.3m ~ 1.4m; floor mounted socket is suitable for five-hole panel, the height of 30CM from the ground. side-by-side installation of switches and sockets height difference should not exceed 1mm.

Single-phase two-hole socket, facing the socket of the right hole or the upper hole with the phase line, the left hole or the lower hole with the zero line, single-phase three-hole socket, facing the socket of the right hole with the phase line, the left hole with the zero line, the grounding wire should be connected to the upper hole, the socket grounding terminal should not be directly connected to the zero line terminal.

Switch socket installation specifications, because the air conditioner consumes more electricity, if and other electrical appliances using a unified socket, easy to French body more dangerous, therefore, must be used separately a socket, and the air conditioner socket shall be used with a switch socket, to ensure safety.

Switching socket installation layout, known what kind of air conditioning is used in the case of air conditioning socket according to the following layout: no special requirements of the socket, generally 0.3m from the ground, split air-conditioning socket according to the outlets reserved hole λ set 1.8m from the ground, such as window air-conditioning is suitable for the window 1.4m from the ground, such as cabinet air-conditioning is suitable for the corresponding λ set 0.3m from the ground, or else according to split air-conditioning consideration of the air-conditioner socket reservation. Otherwise, reserve air-conditioning sockets should be considered according to split air-conditioning.
